1, the model of the same proportion of mapping, generating drawings;
2, analysis of JZ-7 brake principle, logic sequence diagram and overall layout;

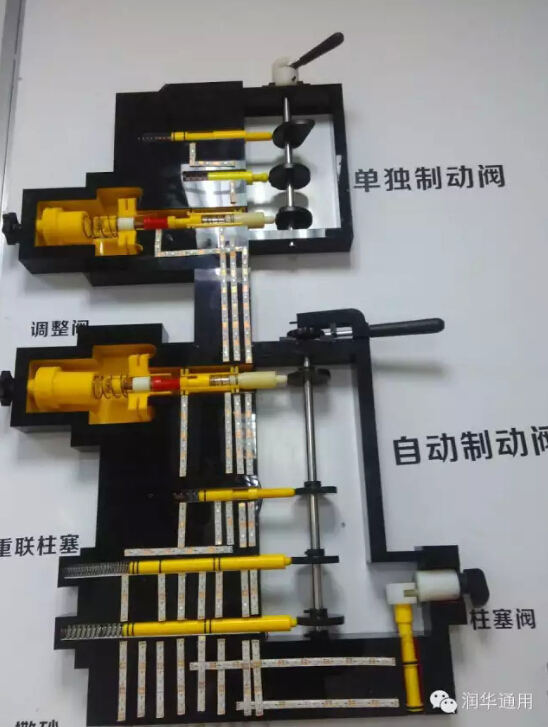

3, model production, including the size of the gate, distribution valve, relay valve, electro pneumatic valve, three way valve, the wind cylinder and other models, using the lathe and laser cutting machine, laser cutting machine can directly import mapping drawings, the same proportion carved model to ensure the accuracy of the teaching board;
4, simulation and control hardware design, the use of PLC control hardware action, reflecting the rapid, to ensure the reliability and stability of the system;
Large maintenance machinery models are different, air brake system is divided into two types, one is to the tamping machine, stable car as the representative of YZ-1 brake system, including gates, a small gate, balanced air cylinder, train tube, brake cylinder, distributing valve, discipline and etc. parts composition. Two is the GMC-96 head grinding car as the representative of the JZ-7 type unit brake system. YZ-1 brake company independent research and development of the teaching board, teaching by the customer response is good, obtains the customer consistent affirmative.
1, the model of the same proportion of mapping, generating drawings;

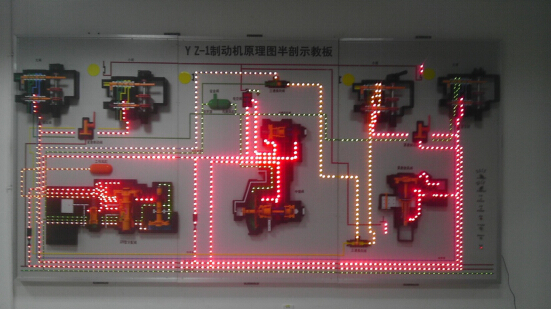

2, analysis of YZ-1 brake principle, logic sequence diagram and overall layout;
3, model production, including the size of the gate, distribution valve, relay valve, electro pneumatic valve, three way valve, the wind cylinder and other models, using the lathe and laser cutting machine, laser cutting machine can directly import mapping drawings, the same proportion carved model to ensure the accuracy of the teaching board;
4, simulation and control hardware design, the use of PLC control hardware action, reflecting the rapid, to ensure the reliability and stability of the system;
5, the overall system debugging, to ensure that the logical sequence of the teaching board and the entity, to ensure the quality of teaching.
